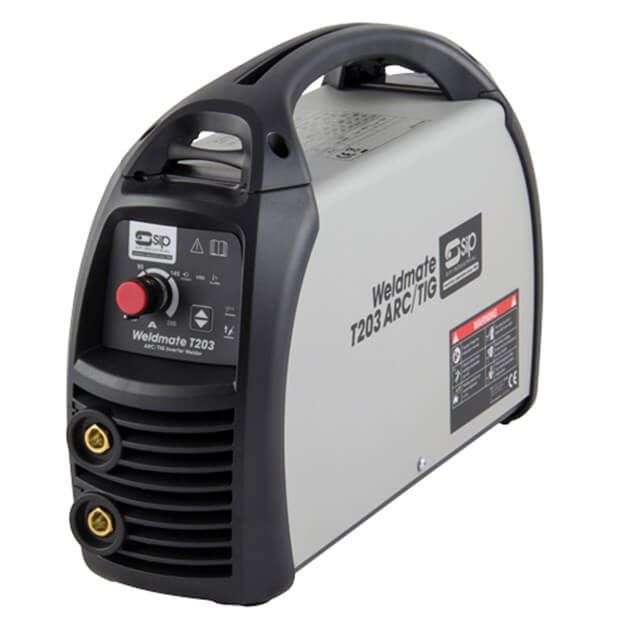

SIP T203 ARC/TIG Inverter Welder
SKU
SIP05708
Need Some Help?
Low Prices!
Easy Returns
Easy Returns
The SIP T203 ARC/TIG Inverter is a multi-functional inverter welder equipped with a Voltage Reduction Device (VRD), Lift-TIG starting, anti-stick circuitry, and dinse sockets. Supplied with accessories.
- 230v (20amp) input supply
- 20amp - 200amp peak current range
- 1.6mm - 5.0mm maximum electrode size
- 1.5mm - 9.0mm weld thickness (mild steel)
- Integrated Voltage Reduction Device (VRD)
- Generator friendly and super lightweight
- On-demand fan cooling for performance
- Reliable Lift-TIG torch starting function
- Anti-stick circuitry and easier controls
- Added thermal overload protection
- 2m electrode lead/2m Earth lead
| ITEM NO. | 05708 |
| Input Supply | 230v (20amp) |
| Output Current | 20amp - 200amp |
| Peak Current | 200amp peak |
| Duty Cycle | 200amp @ 20% |
| Electrode ∅ | 1.6mm - 5.0mm |
| Weld Thickness | 1.5mm - 9.0mm |
| Open Voltage | 72v |
| Power Factor | 0.69 |
| Efficiency | 85% |
| Insulation | Class H |
| Protection | IP21S |
| Gross Weight | 4.75kg |
| Packaged Dimensions | 310 x 210 x 440mm |
