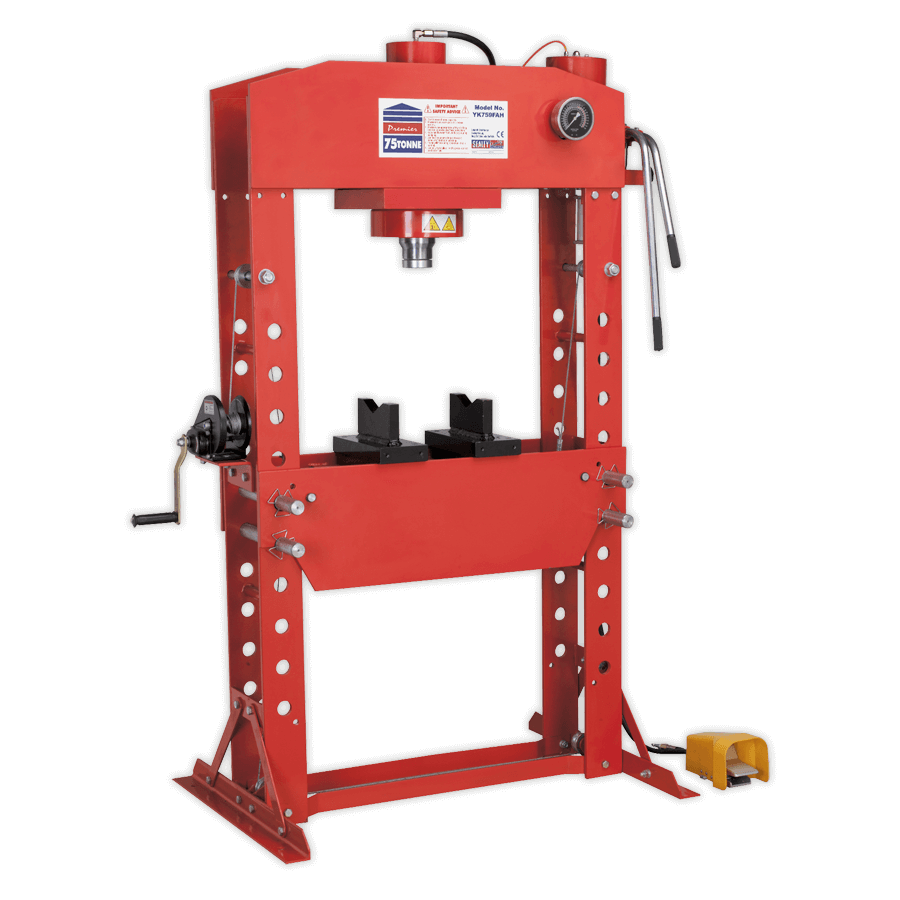

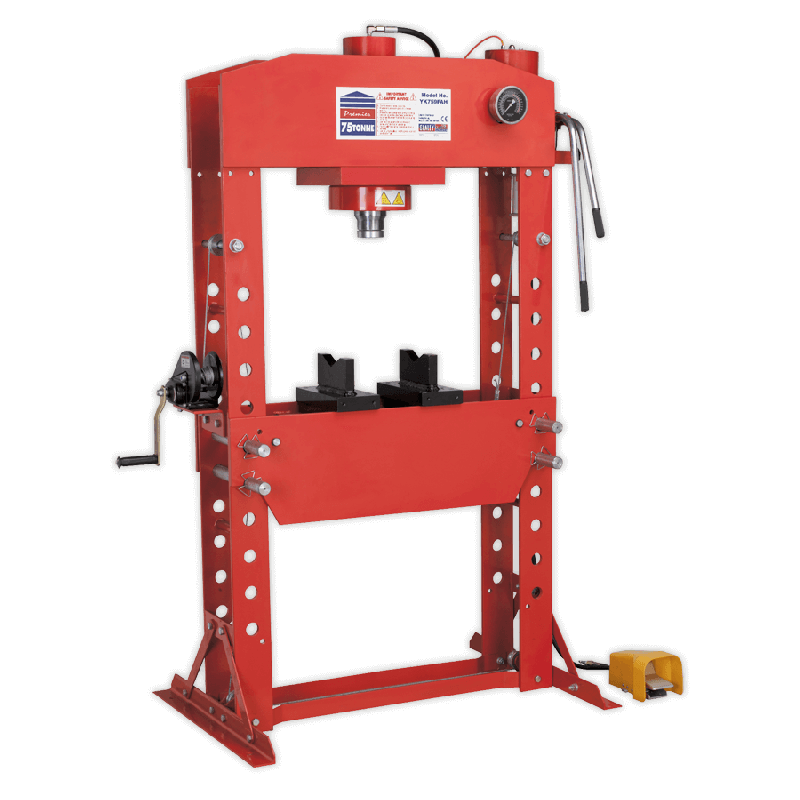

Sealey YK759FAH Air/Hydraulic Press 75tonne Floor Type with Foot Pedal
SKU
SEAYK759FAH
Need Some Help?
Low Prices!
Easy Returns
Easy Returns
- Heavy-duty steel frame construction with side mounted air motor powering hydraulic pump unit.
- 2-Speed manual operation.
- Sliding hydraulic ram assembly giving 285mm of lateral travel for off-centre pressing applications.
- Fitted with ram pressure gauge.
- Supplied with flat pressing plate/V-blocks.
| Model No: | YK759FAH |
| Bench or Floor Mounting: | Floor |
| Type: | Air/Hydraulic |
| Capacity: | 75tonne |
| Ram Stroke: | 250mm |
| Ram Diameter: | Ø80mm |
| Lateral Ram Travel: | 285mm |
| Maximum Height - Ram to Table: | 884mm |
| Minimum Height - Ram to Table: | 68mm |
| Table Aperture: | 251/201mm |
| Working Table Depth: | 279mm |
| Working Table Width: | 800mm |
| Overall Height: | 1923mm |
| Gauge Included: | Yes |
| Working Pressure: | 108-123psi |
| Air Consumption: | 9cfm |
| Weight: | 438kg |
| Safety Guard (Optional): | YKSG75 |
