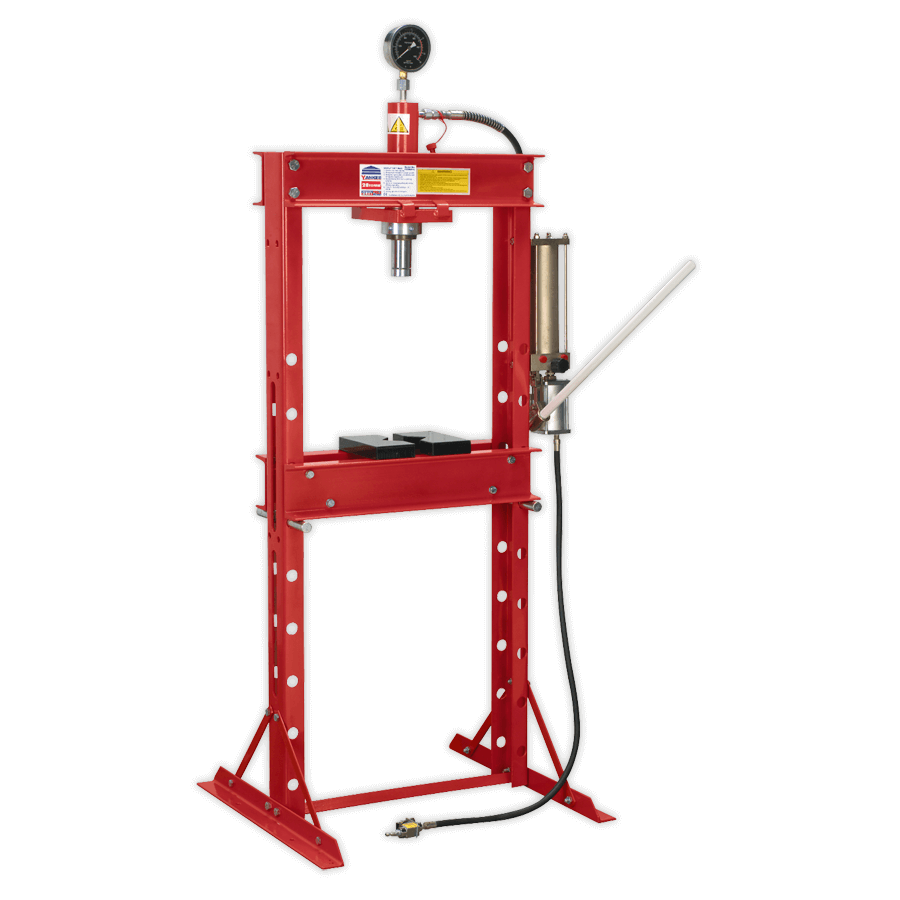

Sealey YK20FAH Air/Hydraulic Press 20tonne Floor Type
SKU
SEAYK20FAH
Need Some Help?
Low Prices!
Easy Returns
Easy Returns
- Steel frame construction with side mounted air motor powering hydraulic pump unit.
- Sliding hydraulic ram assembly giving 400mm of lateral travel for off-centre pressing applications.
- Fitted with ram pressure gauge.
- Supplied with flat pressing plate/V-blocks.
| Model No: | YK20FAH |
| Bench or Floor Mounting: | Floor |
| Type: | Air/Hydraulic |
| Capacity: | 20tonne |
| Ram Stroke: | 190mm |
| Ram Diameter: | Ø50mm |
| Lateral Ram Travel: | 400mm |
| Maximum Height - Ram to Table: | 1040mm |
| Minimum Height - Ram to Table: | 75mm |
| Table Aperture: | 105mm |
| Working Table Depth: | 205mm |
| Working Table Width: | 550mm |
| Overall Height: | 1810mm |
| Gauge Included: | Yes |
| Working Pressure: | 120-200psi |
| Air Consumption: | 4cfm |
| Weight: | 98kg |
| Safety Guard (Optional): | - |
