Sealey VSE5846 Diesel Engine Setting/Locking Tool Kit Citroen Peugeot Ford Volvo 1.4D/1.5D/1.6D HDi/TDCi Belt Drive
SKU
SEAVSE5846
Need Some Help?
Low Prices!
Easy Returns
Easy Returns

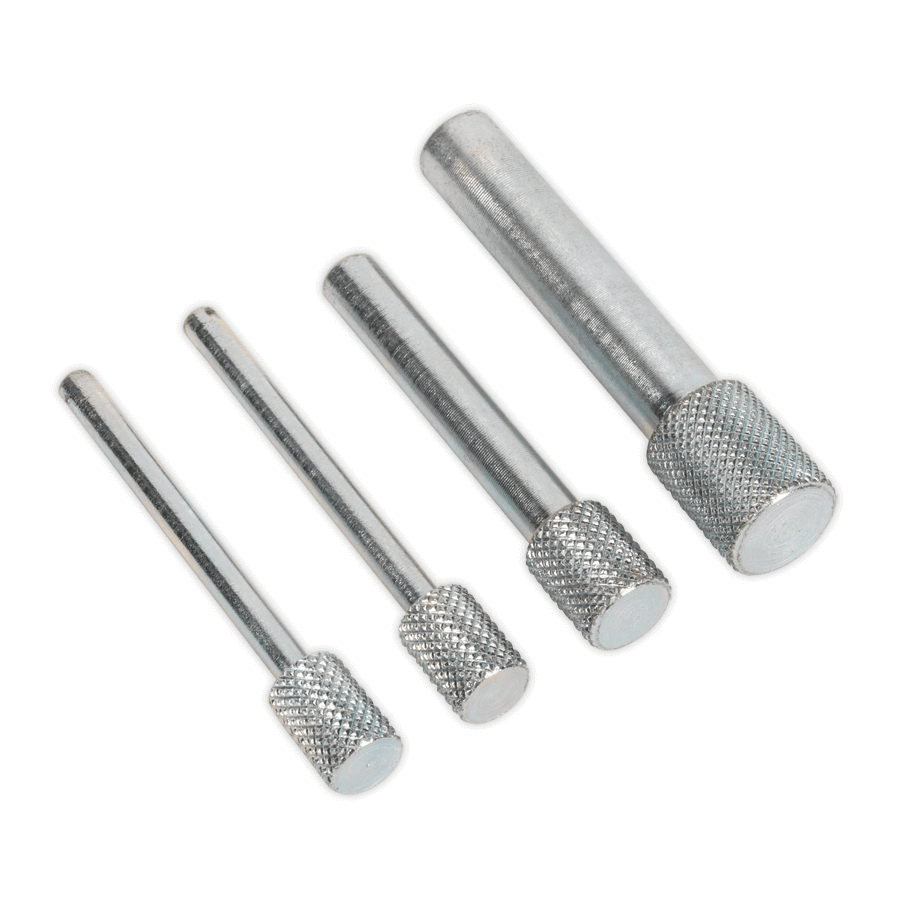

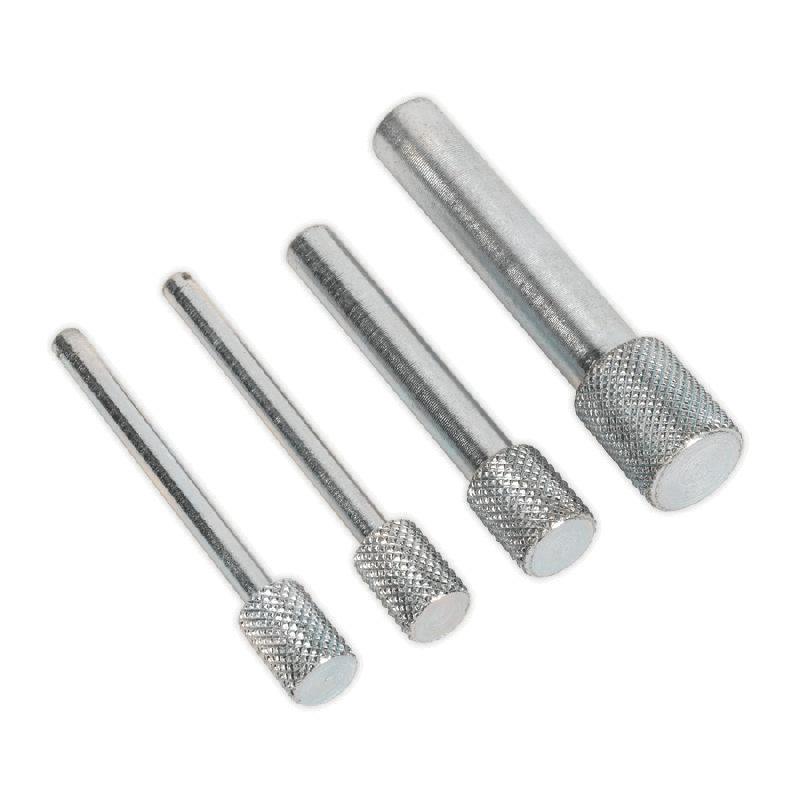

- Set of locking pins for timing belt replacement on Ford 1.5, PSA 1.4 (DV4) and 1.6 (DV6) diesel engines fitted in Citroen, Peugeot, Ford, Mazda, Suzuki, Toyota and Volvo models.
- These timing pins lock and hold the camshaft, crankshaft, flywheel and HP pump in the timed position.
| Model No: | VSE5846 |
| OEM Tool(s): | |
| Flywheel Locking Pin (VSE5846.01): | 303-734 (21-262) (Ford), 49JE02-020 (Mazda), 0194-C (PSA), 09910-05410 (Suzuki), 999-7169 (Volvo) |
| Camshaft/HP Fuel Pump Locking Pins (VSE5846.02): | 11-0-790 (BMW), 303-735 (212-263) (Ford), 49JE02-021 (Mazda), 0194-B (PSA), 09910-05410 Suzuki, 999-7122 (Volvo) |
| Crankshaft Locking Pin (VSE5846.03): | 11-0-300 (BMW), 303-732 (21-260) (Ford), 49JE02-018 (Mazda), 0194-A (PSA), 09910-05410 (Suzuki), 999-7121 (Volvo) |
| Application(s): | |
| Citroen: | Berlingo I/II (05-11), Berlingo III (08-16), C1 (05-10), C2 (03-10), C3 I/II (02-10), C3 III (10-17), C3 Picasso (09-12), C3 Pluriel (04-10), DS3 (09-12), C4 (04-11), C4 II (11-16), C4 Picasso/Grand Picasso (06-13), C5 II (04-08), C5 III (07-12), DS4 (11-12), Nemo (08-10), Xsara II (04-08), Xsara Picasso (04-10) |
| Ford: | B-Max (12-15), C-Max (07-15), EcoSport (13-15), Fiesta (02-15), Focus (04-15), Focus C-Max (03-07), Fusion (04-11), Grand C-Max (10-15), Tourneo Courier (14-16) |
| Mazda: | 2 (02-10), 3 (04-12), 5 (10-12) |
| Peugeot: | 107 (05-10), 1007 (05-10), 206 (01-12), 206+ (10-13), 206CC (05-07), 207 (06-13), 207CC (07-15), 208 (12-17), 2008 (12-17), 307 (01-08), 308 (07-17), 308CC (09-15), 3008 (09-16), 407 (04-11), 4008 (12-15), 508 (11-17), 5008 (09-17), Bipper (08-10), Expert (10-12), Partner I/II (05-11), Partner III (08-17) |
| Suzuki: | Liana (04-08), SX4 (07-11) |
| Toyota: | Aygo (05-10) |
| Volvo: | C30 (06-13), S40 (04-12), S60 (11-15), S80 (09-15), V40 (12-15), V50 (04-12), V60 (11-15), V70 (11-15) |
| Engine Codes: | |
| 1.4D: | F6JA, F6JB |
| 1.4D D-4D: | ZWZ-TV |
| 1.4D DDiS: | (DV4)8HY |
| 1.4D HDi: | DV4C(8HR), DV4TD(8HT), DV4TD(8HW), DV4TD(8HX), DV4TD(8HZ), DV4TED(8HS), DV4TED4(8HX), DV4TED4(8HY), DVTED4(8HV) |
| 1.4D TDCi: | F6JA, F6JB, F6JC, F6JD, KVJA |
| 1.5D TDCi: | UGJC, ENUG, UGCA |
| 1.6D: | Y6, MZ-CD(Y6) |
| 1.6D DDiS: | DV6(9HX) |
| 1.6D eDrive: | D4162T, D4164T |
| 1.6D eHDi: | DV6C(9HR), DV6FC(BHW), DV6FC(BHX), DV6FC(BHY), DV6FC(BHZ) |
| 1.6D HDi: | DV6(9HR), DV6ATED(9HX), DV6ATED(9HY), DV6ATED4(9HX), DV6AUTED4(9HX), DV6BTED4(9HT), DV6BTED4(9HW), DV6BUTED4(9HT), DV6C(9HL), DV6C(9HR), DV6C9(HR), DV6CATED(9HX), DV6D(9HP), DV6DTED(9HJ) , DV6DTED(9HP), DV6ETED(9HN), DV6DTED(9HF), DV6FD (BHY), DV6FE (BHW), DV6TED(9HP), DV6TED4(9HV), DV6TED4(9HW), DV6TED4(9HX), DV6TED4(9HY), DV6TED4(9HZ), DV6TED4B, DV6TED4B(9HV), DV6TED4BU(9HS), DV6UTED4(9HU), DV6UTED4(9HX), DVTED4(9HV) |
| 1.6D TDCi: | G8DA, G8DB, G8DD, G8DE, G8DF, GPDA, GPDC, HHDA, HHDB, HHJA, HHJB, HHJC, HHJD, HHJE, HHJF, MTDA, NGDA, T1DA, T1DB, T3DA, T3DB, TZJA, TZJB, UBJA |
| 1.6D TDCI ECOnetic: | G8DD, GPDA, HHJD, TZJA, TZJB |
