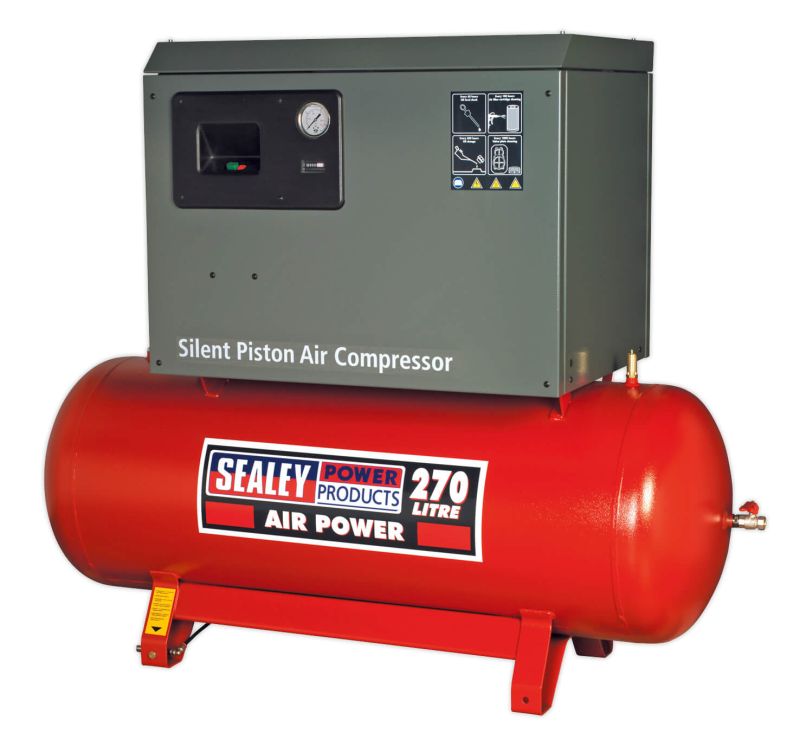

Sealey SAC72775BLN Compressor 270ltr Belt Drive 7.5hp 3ph 2 Stage with Cast Cylinders Low Noise
SKU
SEASAC72775BLN
Need Some Help?
Low Prices!
Easy Returns
Easy Returns
- Heavy-duty low noise compressor suitable for garage, bodyshop and industrial applications.
- Fitted with cast iron cylinder head enabling slower revving and improved pump life.
- Fully enclosed, insulated design gives quiet running at just 66dB(A) (at 1mtr) and protects vital components from damage.
- Features fully automatic pressure cut out switch and tank pressure gauge.
- Heavy-duty 3-phase electric motor with soft start feature.
- Control box features tachometer for monitoring use and optimizing service times.
| Model No: | SAC72775BLN |
| Motor Output: | 7.5hp |
| Voltage/Phase: | 415V - 3ph |
| Minimum Rated Supply: | 32A |
| Speed: | 1280rpm |
| Noise Level: | 66dB(A) |
| Air Displacement cfm(ltr/min): | 32.6(924) |
| Maximum Free Air Delivery cfm(ltr/min): | 23.6(668) |
| Maximum Pressure: | 145psi(10bar) |
| Receiver Capacity: | 270ltr |
| Outlet Fitting: | 1/2"BSP Female Tap |
| Dimensions (W x D x H): | 1550 x 600 x 1260mm |
| Weight: | 213kg |
