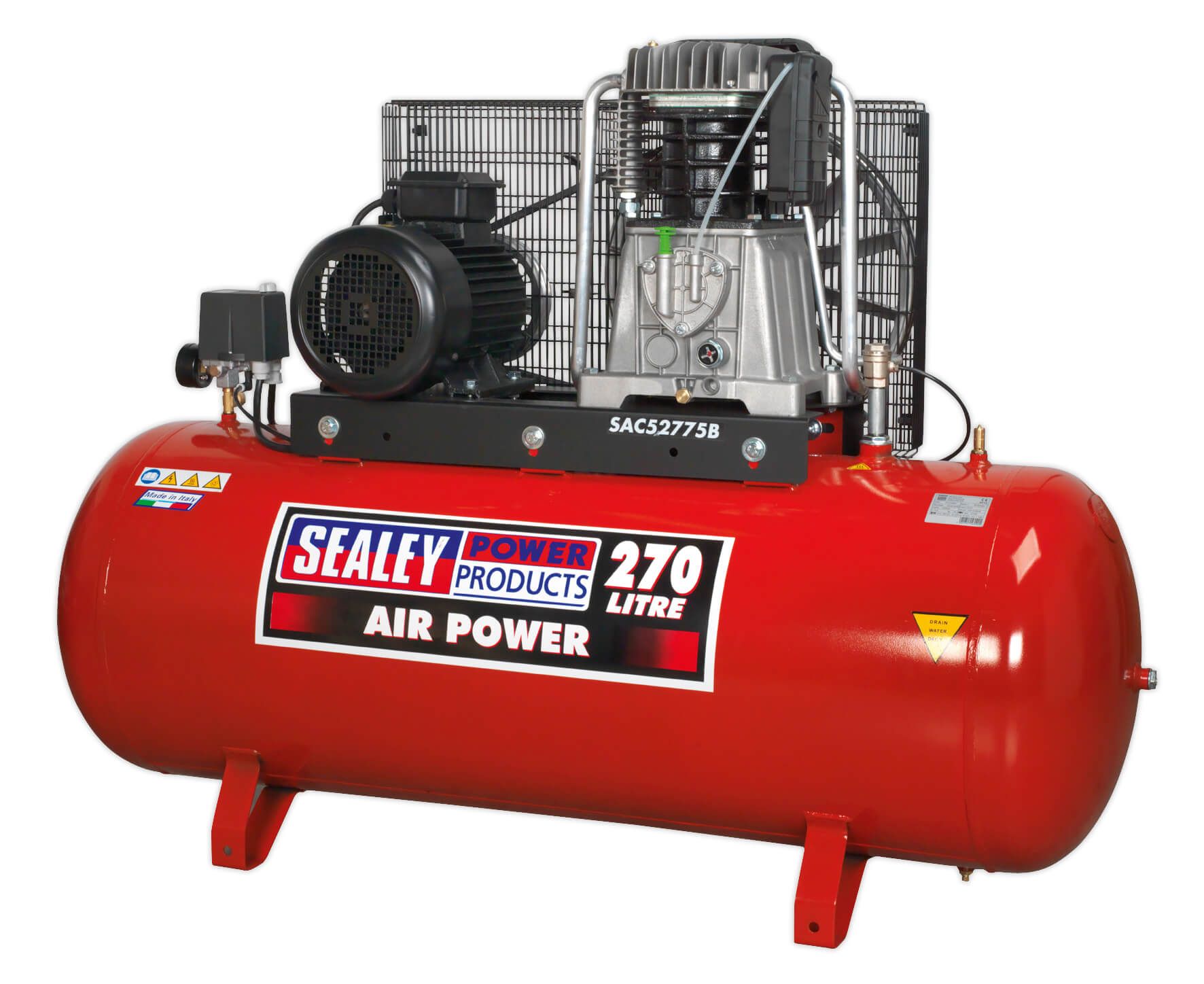

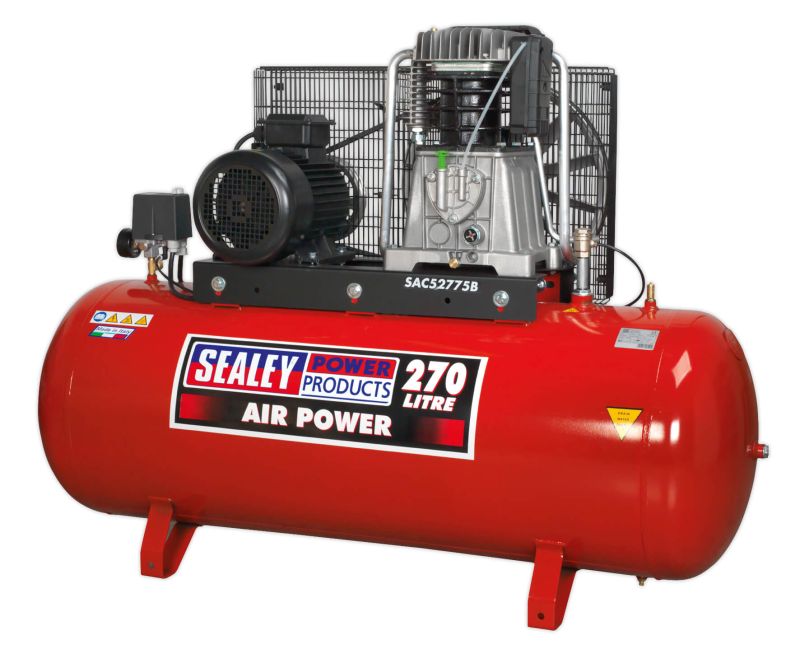

Sealey SAC52775B Compressor 270ltr Belt Drive 7.5hp 3ph 2 Stage with Cast Cylinders
SKU
SEASAC52775B
Need Some Help?
Low Prices!
Easy Returns
Easy Returns
- Heavy-duty 3-phase compressor suitable for the professional workshop.
- Two stage pump system coupled with a 7.5hp motor maximises performance to keep running costs low compared to single stage, single phase model.
- Pump features heavy-duty full cast cylinders, capped by an alloy head for improved heat dissipation and long life.
- Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling.
- Supplied with full CE certification, test certificates and operating/maintenance manual.
| Model No: | SAC52775B |
| Motor Output: | 7.5hp |
| Voltage/Phase: | 415V - 3ph |
| Minimum Rated Supply: | 32A |
| Speed: | 1280rpm |
| Air Displacement cfm(ltr/min): | 29.7(841) |
| Maximum Free Air Delivery cfm(ltr/min): | 21.5(609) |
| Maximum Pressure: | 145psi(10bar) |
| Receiver Capacity: | 270ltr |
| Outlet Fitting: | 1/2"BSP Female Tap |
| Dimensions (W x D x H): | 1550 x 510 x 1070mm |
| Weight: | 143kg |
