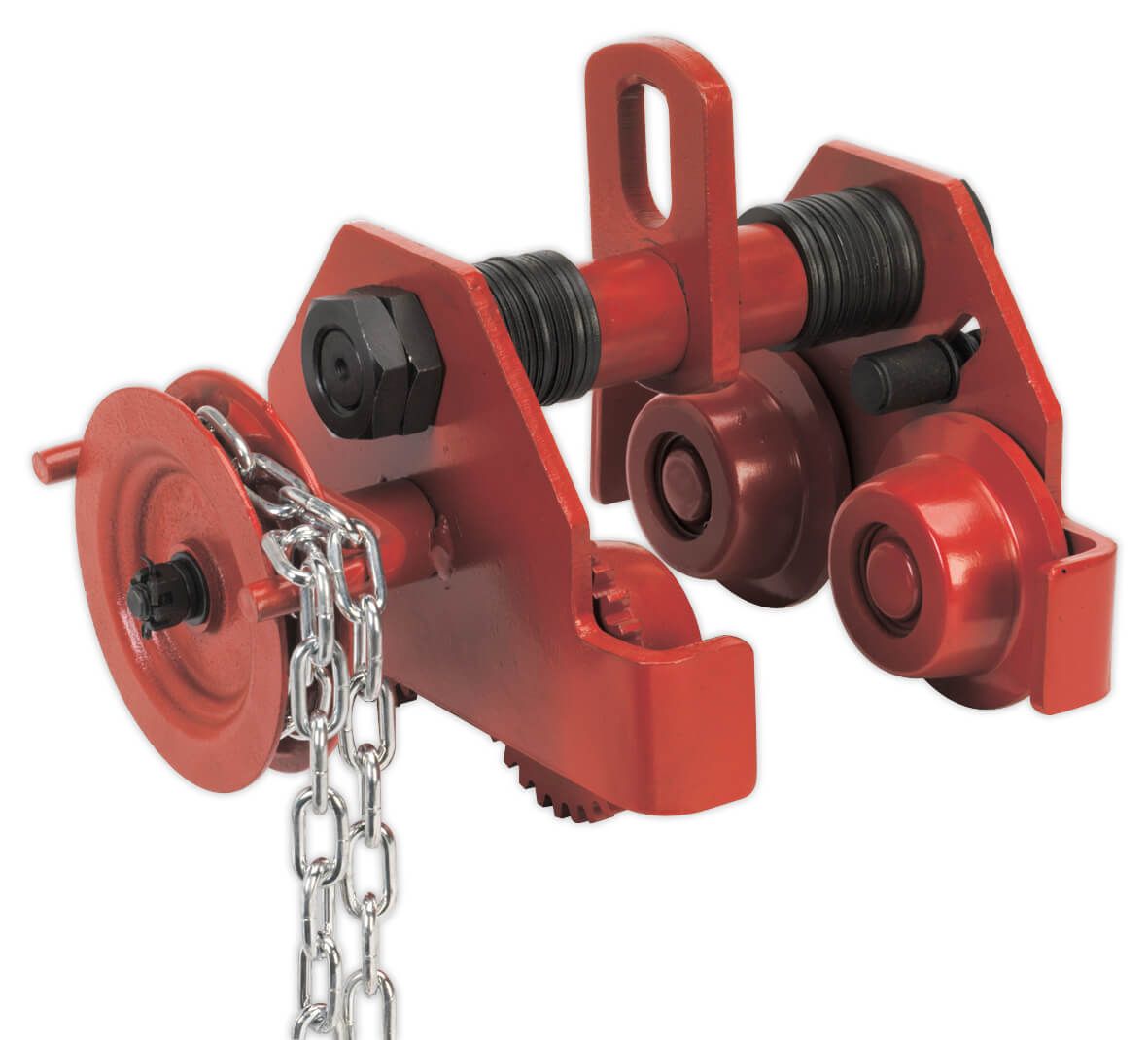

Sealey PT1000G Trolley Geared 1tonne
SKU
SEAPT1000G
Need Some Help?
Low Prices!
Easy Returns
Easy Returns
- Suitable for use with our lever hoists or chain blocks.
- Designed for mounting onto an I-beam or RSJ to allow load to be manoeuvred sideways.
- Incorporates wheel guards to prevent contact with other trolleys mounted on same load bearer.
| Model No: | PT1000G |
| Capacity: | 1000kg |
| Test Load: | 1500kg |
| Track Width Adjustable Range: | 64-140mm |
| Minimum Curve Radius: | 1000mm |
| A: | 255mm |
| B: | 205mm |
| C: | 135mm |
| D: | 104mm |
| E: | 128mm |
| Weight: | 17kg |
| Minimum Standard I-Beam Dimensions (D x W x Web): | 125 x 75 x 5.5mm |
| Maximum Distance Between Spans: | 2500mm |
| Maximum Standard I-Beam Dimensions (D x W x Web): | 250 x 125 x 7.5mm |
| Maximum Distance Between Spans: | 6000mm |
| Refer to catalogue for diagram. |
