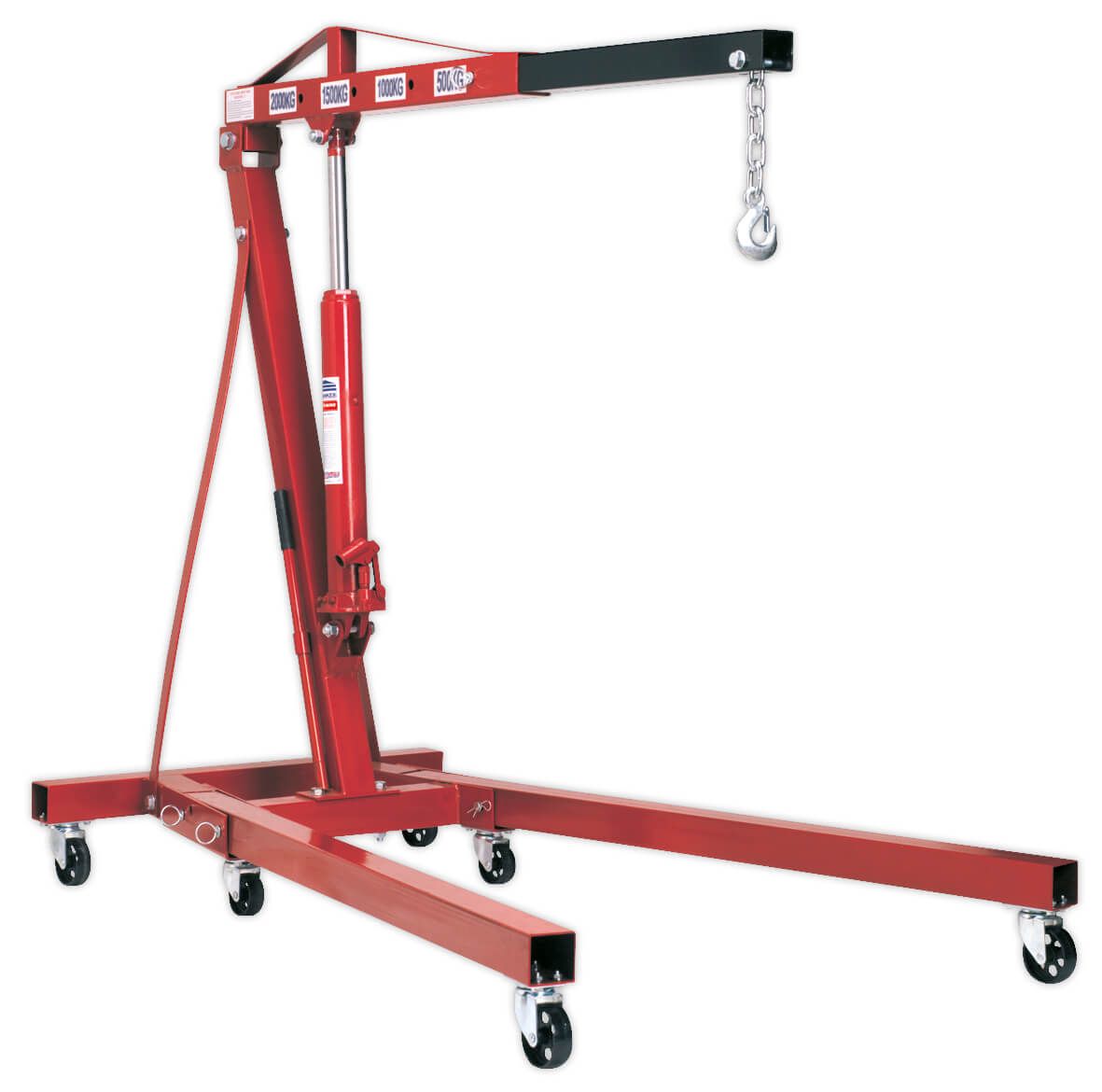

Sealey PH20 Folding Crane 2tonne
SKU
SEAPH20
Need Some Help?
Low Prices!
Easy Returns
Easy Returns
- Lifts 2000kg at 930mm jib extension.
- Folds for easy storage, freeing valuable workshop space when not in use.
- Bottle jack type hydraulic unit for economy.
- Tested to 25% overload.
- Some self-assembly required.
| Model No: | PH20 |
| Lifting Capacity Position 1: | 2000kg |
| Lifting Capacity Position 2: | 1500kg |
| Lifting Capacity Position 3: | 1000kg |
| Lifting Capacity Position 4: | 500kg |
| Lifting Capacity Position 5: | - |
| Max. Lift Ht at Max. Jib Ext. Position 1: | 2060mm |
| Max. Lift Ht at Max. Jib Ext. Position 2: | 2190mm |
| Max. Lift Ht at Max. Jib Ext. Position 3: | 2330mm |
| Max. Lift Ht at Max. Jib Ext. Position 4: | 2490mm |
| Max. Lift Ht at Max. Jib Ext. Position 5: | - |
| Length of Jib Position 1: | 930mm |
| Length of Jib Position 2: | 1110mm |
| Length of Jib Position 3: | 1200mm |
| Length of Jib Position 4: | 1460mm |
| Length of Jib Position 5: | - |
| Height Jib Down: | 1440mm |
| Length: | 1750mm |
| Length Legs Extended: | - |
| Rear Width: | 850mm |
| Width Inside Front Frame: | 915mm |
| Width Front Frame: | 1055mm |
| Height Legs Folded: | 1540mm |
| Height of Frame: | 195mm |
| Weight: | 77kg |
