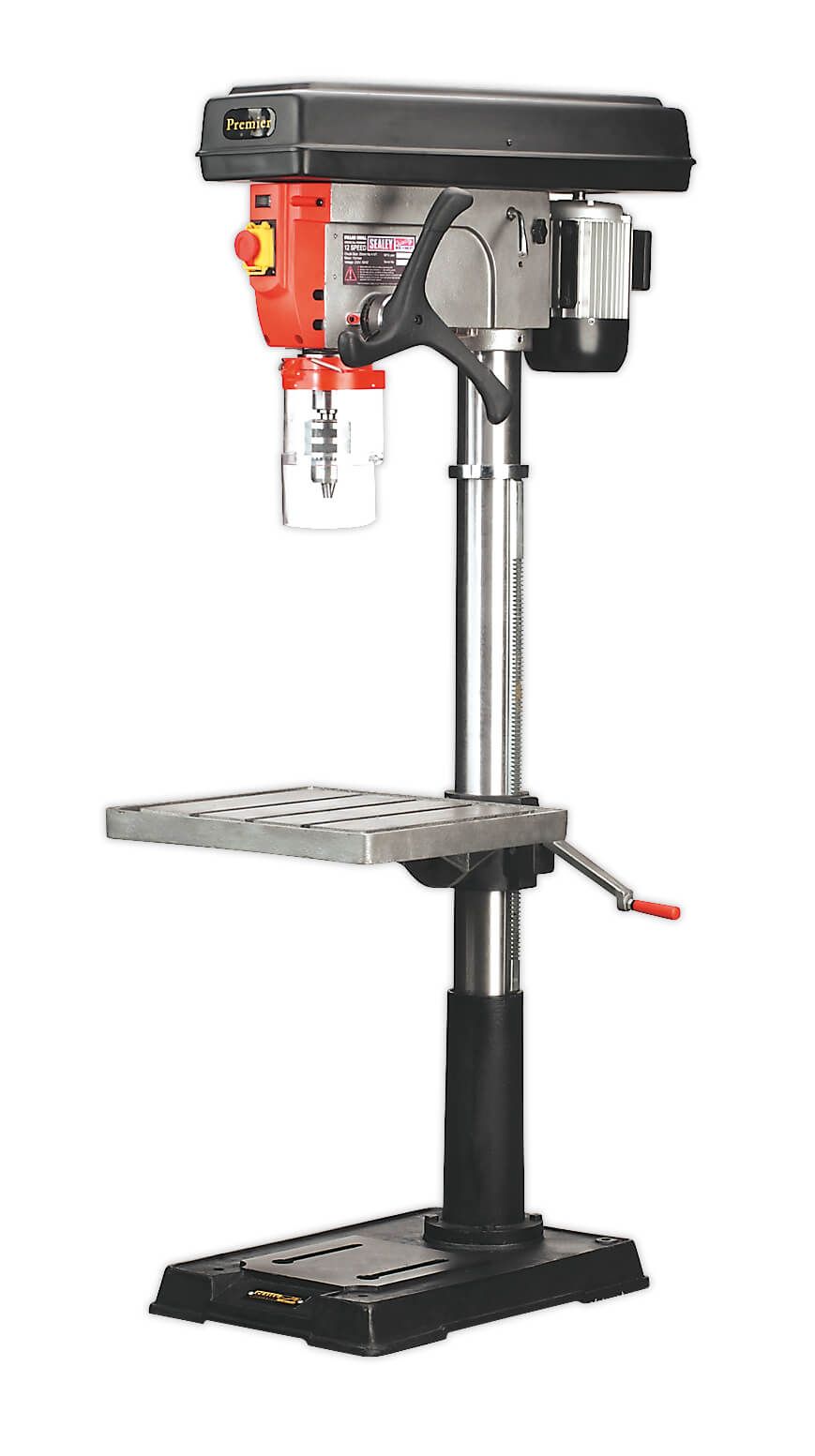

Sealey PDM260F Pillar Drill Floor 12 Speed 1710mm Height 230V
SKU
SEAPDM260F
Need Some Help?
Low Prices!
Easy Returns
Easy Returns
- One of a comprehensive range of Premier floor standing pillar drills for the professional workshop.
- Features heavy-duty aluminium-bodied motor for long and reliable performance.
- No-volt release switch to prevent inadvertent start up and pulley cover protected by microswitch to prevent drill operating when cover is open.
- Fitted with an integral work light which illuminates the drilling table giving operator a clear view of the drilling process.
- Supplied with flip-up chuck guard.
- Large sized square table fitted with precision rack and pinion height adjustment.
| Model No: | PDM260F |
| Drilling Capacity (Chuck Size): | 20mm |
| Spindle Nose Taper: | MT4 |
| Swing: | 612mm |
| Spindle Centre to Column: | 260mm |
| Spindle Travel: | 120mm |
| Number of Speeds: | 12 |
| Speed Range: | 120-3480rpm |
| Maximum Distance Spindle to Table: | 680mm |
| Maximum Distance Spindle to Base: | 1160mm |
| Working Table Surface Size: | 425 x 475mm |
| Working Base Surface Size: | 410 x 330mm |
| Overall Base Size: | 575 x 455mm |
| Column Diameter: | Ø92mm |
| Collar Diameter: | Ø85mm |
| Overall Height: | 1710mm |
| Motor Power: | 750W (925W) |
| Supply: | 230V |
| Weight: | 125kg |
| Optional Keyless Chuck 16mm: | PDM/KC |
| Integral Work Light (Bulb not included): | Yes |
