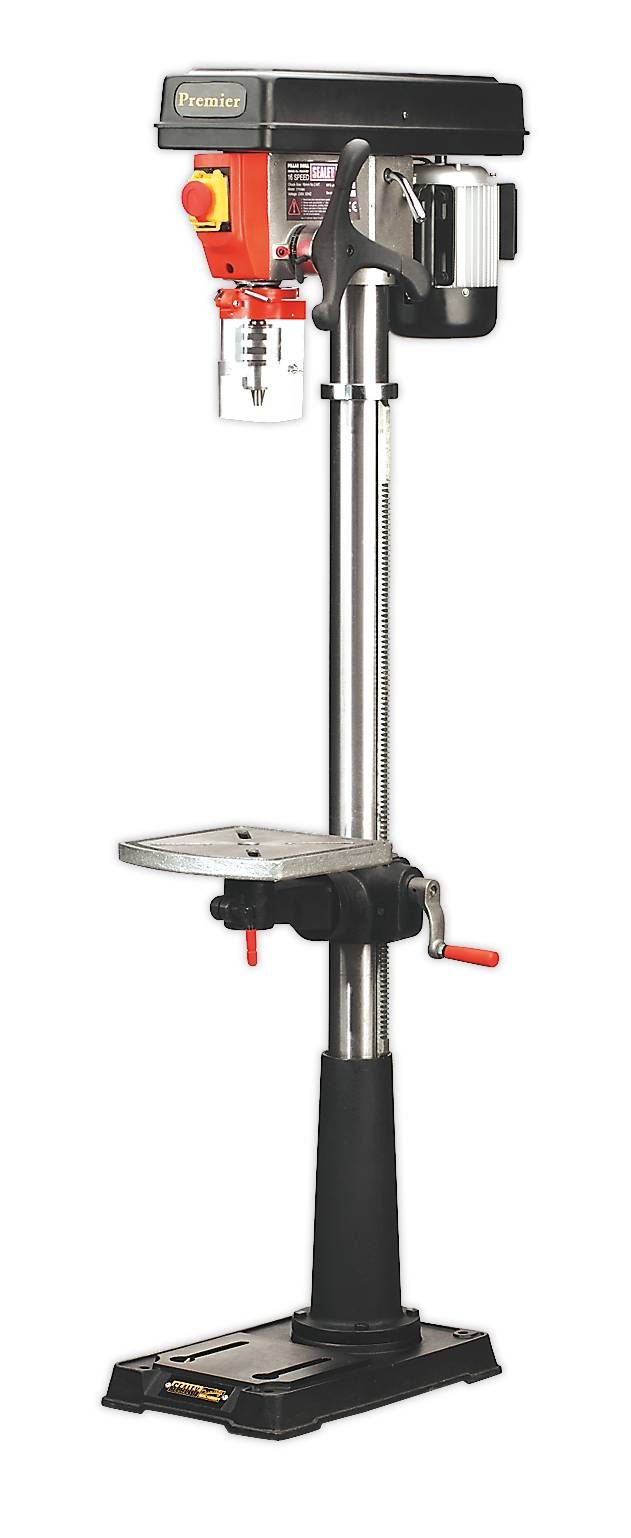

Sealey PDM170F Pillar Drill Floor 16 Speed 1610mm Height 230V
SKU
SEAPDM170F
Need Some Help?
Low Prices!
Easy Returns
Easy Returns
- One of a comprehensive range of Premier floor standing pillar drills for the professional workshop.
- Features heavy-duty aluminium-bodied motor for long and reliable performance.
- No-volt release switch to prevent inadvertent start up and pulley cover protected by microswitch to prevent drill operating when cover is open.
- Supplied with flip-up chuck guard.
- Large sized square table fitted with precision rack and pinion height adjustment.
| Model No: | PDM170F |
| Drilling Capacity (Chuck Size): | 16mm |
| Spindle Nose Taper: | MT2 |
| Swing: | 413mm |
| Spindle Centre to Column: | 170mm |
| Spindle Travel: | 80mm |
| Number of Speeds: | 16 |
| Speed Range: | 190-3000rpm |
| Maximum Distance Spindle to Table: | 770mm |
| Maximum Distance Spindle to Base: | 1255mm |
| Working Table Surface Size: | 254 x 254mm |
| Working Base Surface Size: | 205 x 200mm |
| Overall Base Size: | 450 x 270mm |
| Column Diameter: | Ø73mm |
| Collar Diameter: | Ø55mm |
| Overall Height: | 1610mm |
| Motor Power: | 370W (550W) |
| Supply: | 230V |
| Weight: | 58kg |
| Optional Keyless Chuck 16mm: | PDM/KC |
| Integral Work Light (Bulb not included): | No |
