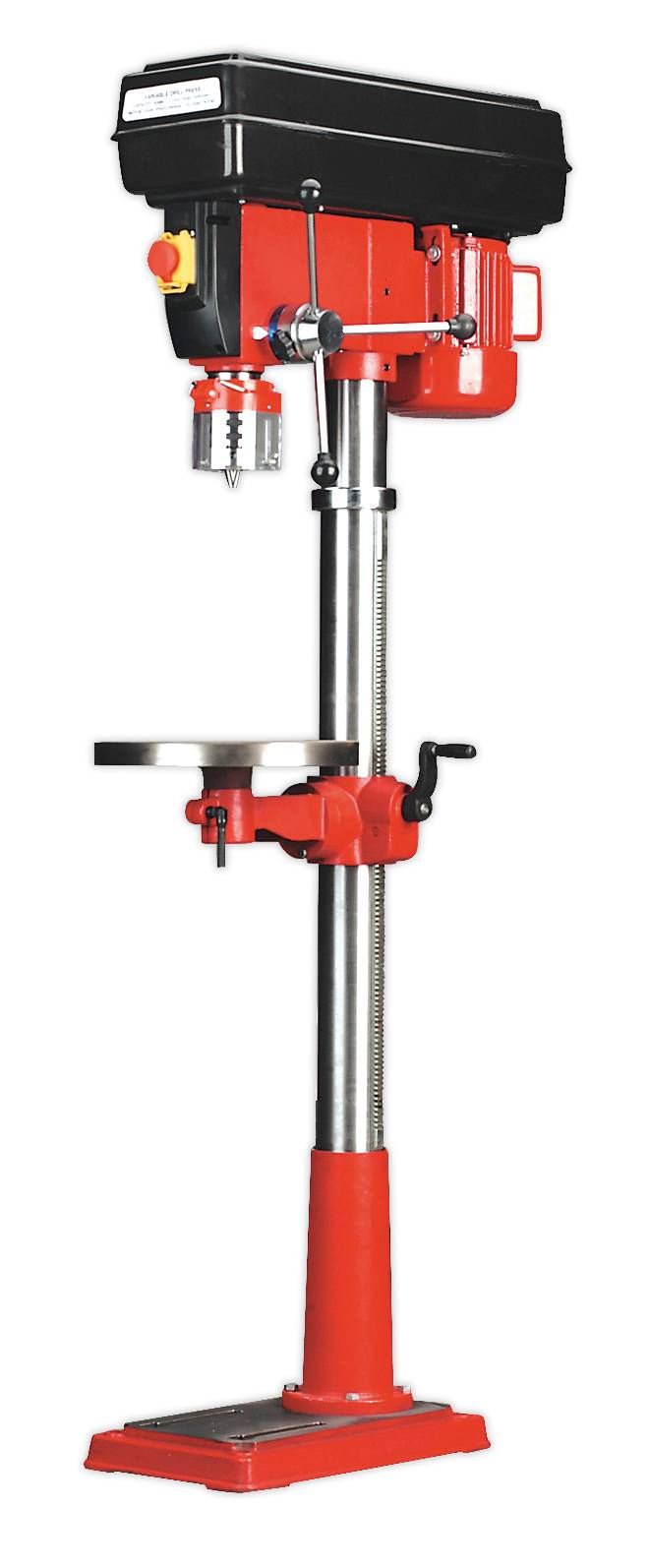

Sealey GDM200F/VS Pillar Drill Floor Variable Speed 1630mm Height 650W/230V
SKU
SEAGDM200F/VS
Need Some Help?
Low Prices!
Easy Returns
Easy Returns
- Variable speed model allows stepless control of drilling speed between minimum and maximum enabling finer control of finish and tolerance.
- The belt transmission uses two spring tensioned cone pulleys, the diameter of which can be adjusted by moving a centre idle pulley with the speed adjustment control lever.
- Safety devices fitted include a no-volt release switch, allowing insurance company approval for use in educational establishments.
- Supplied with chuck guard.
| Model No: | GDM200F/VS |
| Drilling Capacity (Chuck Size): | 16mm |
| Spindle Nose Taper: | MT2 |
| Swing: | 436mm |
| Spindle Centre to Column: | 178mm |
| Spindle Travel: | 80mm |
| Number of Speeds: | Variable |
| Speed Range: | 150-2300rpm |
| Maximum Distance Spindle to Table: | 800mm |
| Maximum Distance Spindle to Base: | 1230mm |
| Working Table Surface Size: | Ø310mm |
| Working Base Surface Size: | 205 x 205mm |
| Overall Base Size: | 460 x 275mm |
| Column Diameter: | Ø80mm |
| Collar Diameter: | Ø60mm |
| Overall Height: | 1630mm |
| Motor Power (Start): | 450W (650W) |
| Supply: | 230V |
| Weight: | 81kg |
| Optional Keyless Chuck 16mm: | GDMX/KC |
