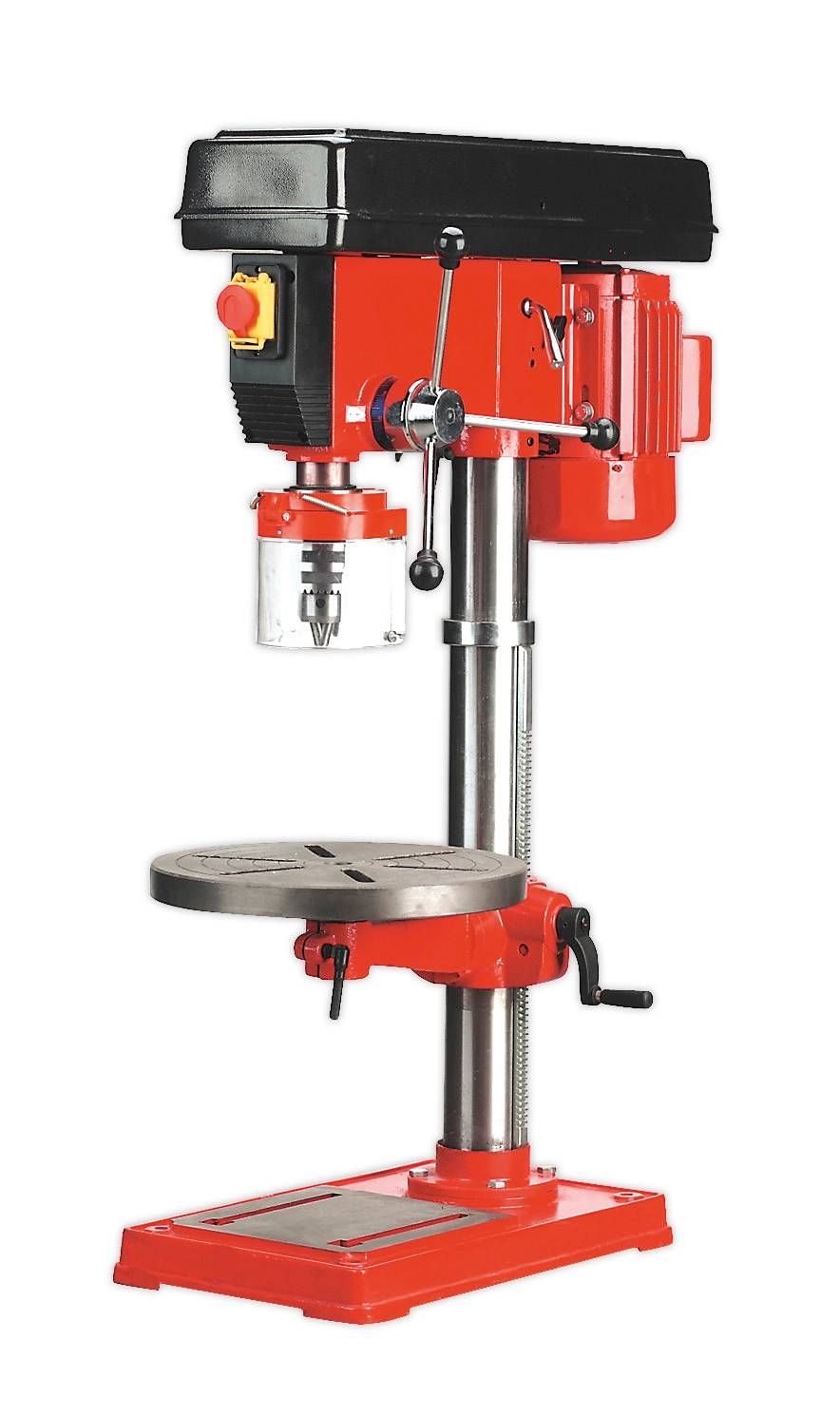

Sealey GDM180B Pillar Drill Bench 16 Speed 1085mm Height 750W/230V
SKU
SEAGDM180B
Need Some Help?
Low Prices!
Easy Returns
Easy Returns
- One of a comprehensive range of bench pillar drills to suit light industrial, agricultural and woodworking applications.
- Meets Safety of Machinery (Safety) Directives 1992 (and amendments).
- Safety devices fitted include a no voltage release switch, allowing insurance company approval for use in educational establishments.
- Model No. GDM50B and up have Morse taper spindle housings for taking taper shank drill bits.
- All models offer multiple speed drives and access to drive belts is denied during operation by mechanical protection.
- All drills are fitted with rack and pinion feed shafts with preset depth control for repetitive work.
- Mortise attachments are available for all Model No's GDM120B - GDM200F inclusive.
| Model No: | GDM180B |
| Drilling Capacity (Chuck Size): | 20mm |
| Spindle Nose Taper: | MT3 |
| Swing: | 520mm |
| Spindle Centre to Column: | 220mm |
| Spindle Travel: | 80mm |
| Number of Speeds: | 16 |
| Speed Range: | 120-3000rpm |
| Maximum Distance Spindle to Table: | 495mm |
| Maximum Distance Spindle to Base: | 685mm |
| Working Table Surface Size: | Ø355mm |
| Working Base Surface Size: | 245 x 240mm |
| Overall Base Size: | 520 x 320mm |
| Column Diameter: | 80mm |
| Collar Diameter: | 75mm |
| Overall Height: | 1085mm |
| Motor Power (Start): | 550W (750W) |
| Supply: | 230V |
| Weight: | 80kg |
| Optional Keyless Chuck 16mm: | n/a |
